| Model: | SK114 |
| Category： | Mini button load cell |
| Capacity: | 1,2,5,10,20,50,75,100 kN |
| Rated Output: | 1.5±10%mV/V |
| Product Orgin: | China |
| The load cell can be customised for capacity, accuracy, dimension and other parameters. | |

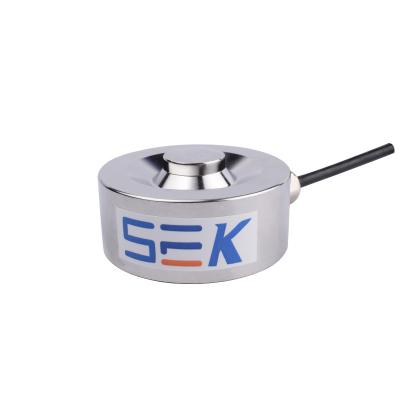

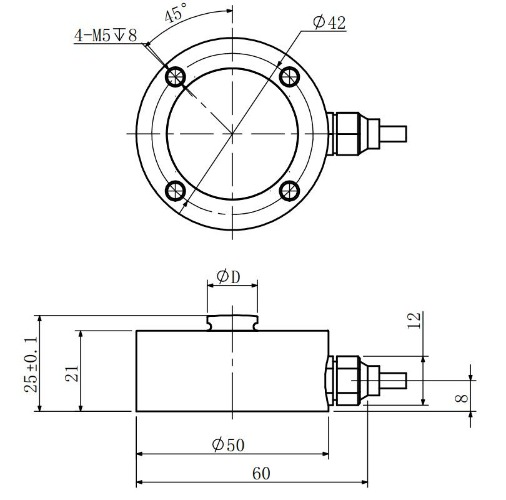

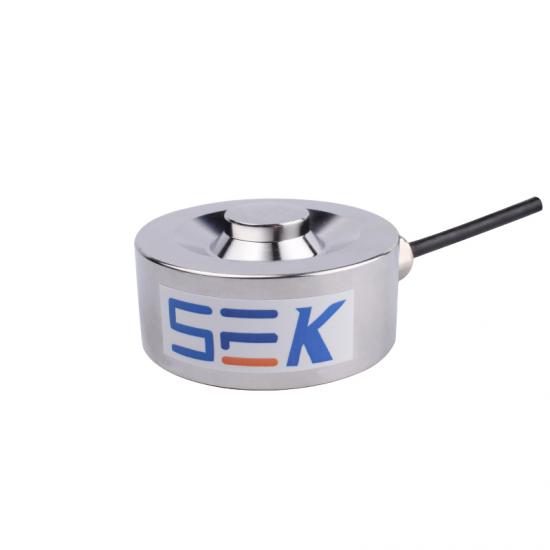

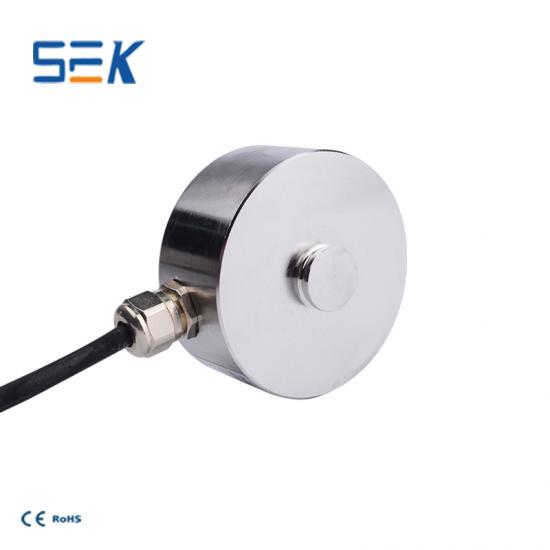

SK114 Micro Pressure Force Sensor 0-100KN designed for high-capacity weighing applications, with a maximum capacity of 100KN. Each load cell is supplied with a 3 metre shielded cable and the 4xM5 threaded holes located at the bottom make the push button load cell easy to install and you may find the SK114 suitable for applications such as load distribution analysis, mould pressure measurement, force overload protection, clamp force measurement, assembly force monitoring, hydraulic pressure control and many more.
| Specifications | Technique |

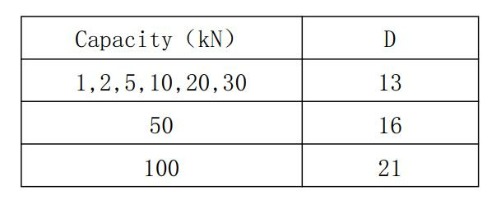

| Capacity | 1,2,5,10,20,50,75,100 kN |
| Rated output | 1.5±10%mV/V |
| Zero balance | ±0.03 mV/V |
| Non-linearity | 0.2%F.S. |
| Hysteresis | 0.1%F.S. |
| Repeatability | 0.1%F.S. |
| Temp.effect on output | 0.05%F.S./10℃ |
| Temp.effect on zero | 0.05%F.S./10℃ |
| Input impedance | 780±20Ω |
| Output impedance | 700±10Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5~15V |
| Maximum excitation | 20V |
| Compensated temp range | -10~60℃ |
| Operation temp range | -20~80℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |

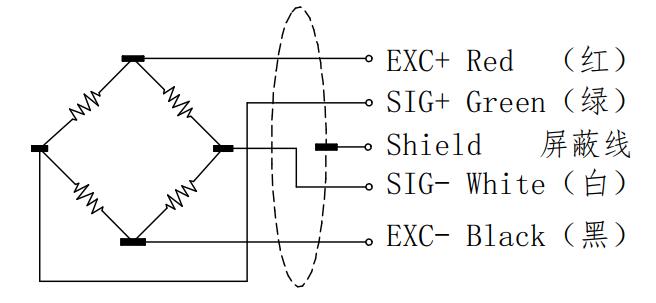

| Cable size | φ4×3000mm |
