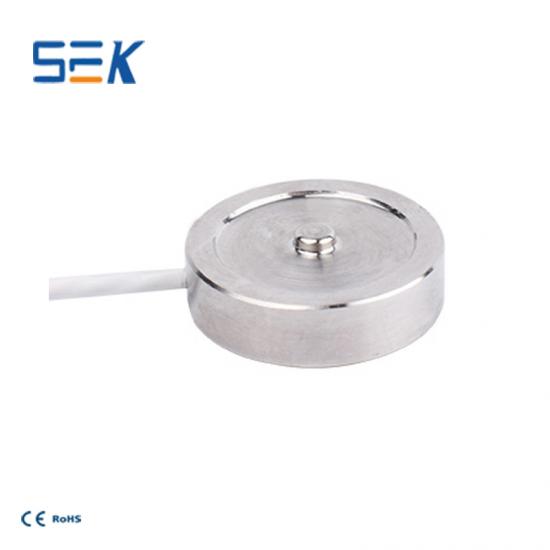

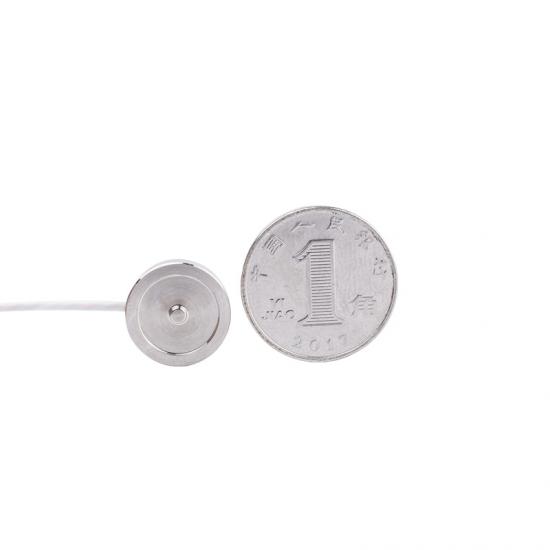

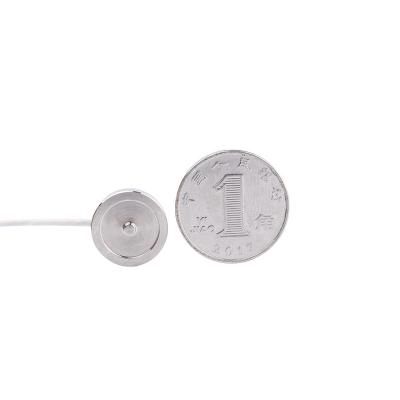

SK103 Miniature compression load cell

Model: SK103
Category: Mini button load cell
Capacity: 100,200,500N
Rated Output: 1.5±15%mV/V
Product Orgin: China
The load cell can be customised for capacity, accuracy, dimension and other parameters.

SK103 Miniature compression load cell  featuring miniature dimensions can be used in a wide range of industrial applications, especially for force measurement where space is limited. The miniature compression force transducer utilises strain gauge technology and is available in eight rated capacities of 100N,200N,500N.

Specifications Technique
Capacity 100N,200N,500N
Rated output 1.5±15%mV/V
Zero balance ±0.05 mV/V
Non-linearity 0.50%F.S.
Hysteresis 0.20%F.S.
Repeatability 0.20%F.S.
Temp.effect on output 0.05%F.S./10
Temp.effect on zero 0.05%F.S./10
Input impedance 800~1100Ω
Output impedance 800~1100Ω
Insulation 5000MΩ/100VDC
Recommended excitation 5~12V
Maximum excitation 15V
Compensated temp range -10~60
Operation temp range -20~80
Safe overload 150%F.S.
Ultimate overload 200%F.S.
Cable size φ1.2×3000mm
Material Stainless Steel
