| Model: | SK106 |
| Category： | Mini button load cell |
| Capacity: | 50,100,200,300,500,1000N |
| Rated Output: | 1.0±20%mV/V |
| Product Orgin: | China |
| The load cell can be customised for capacity, accuracy, dimension and other parameters. | |

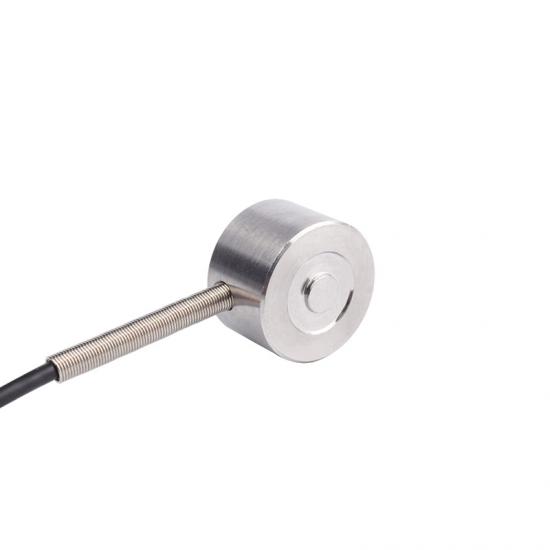

SK106 Small button type load cell is made of stainless steel and is based on strain gauge technology and is available in 50N / 100N / 200N /300N/ 500N / 1kN measuring ranges for compression force measurement. The small force sensor is supplied with a 3 metre shielded cable make the button load cell easy to install and you may find the SK106 suitable for applications such as load distribution analysis, mould pressure measurement, force overload protection, clamp force measurement, assembly force monitoring, hydraulic pressure control and many more.
| Specifications | Technique |
| Capacity | 50,100,200,300,500,1000N |
| Rated output | 1.0±20%mV/V |
| Zero balance | ±0.03 mV/V |
| Non-linearity | 0.50%F.S. |
| Hysteresis | 0.20%F.S. |
| Repeatability | 0.20%F.S. |
| Temp.effect on output | 0.05%F.S./10℃ |
| Temp.effect on zero | 0.05%F.S./10℃ |
| Input impedance | 800~1100Ω |
| Output impedance | 800~1100Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5~12V |
| Maximum excitation | 15V |
| Compensated temp range | -10~60℃ |
| Operation temp range | -20~80℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | φ2×3000mm |
| Material | Stainless Steel |
