| Model: | SK113A |
| Category： | Mini button load cell |
| Capacity: | 10,20,30,50kg |
| Rated Output: | 1.5±20%mV/V |
| Product Orgin: | China |
| The load cell can be customised for capacity, accuracy, dimension and other parameters. | |

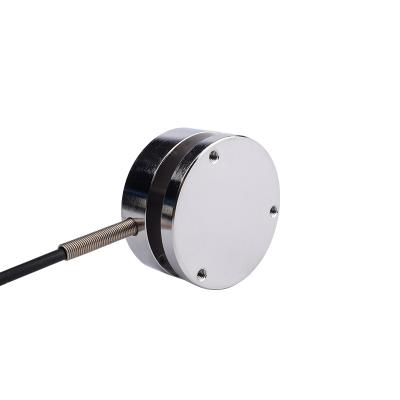

SK113A Miniature flange force transducer uses metal foil strain gauge technology for compression/pressure measurement in static and dynamic situations. The Miniature force sensor is made of stainless steel and is based on strain gauge technology and is available in 100N / 200N / 500N / 1kN / 2kN / 5kN / 10kN measuring ranges for compression force measurement. The flange force sensor is suitable for force overload detection, clamping force measurement on fixtures, hydraulic pressure testing, etc.
| Specifications | Technique |
| Capacity | 10,20,30,50kg |
| Rated output | 1.5±20%mV/V |
| Zero balance | ±0.05mV/V |
| Non-linearity | 0.20%F.S. |
| Hysteresis | 0.20%F.S. |
| Repeatability | 0.10%F.S. |
| Temp.effect on output | 0.05%F.S./10℃ |
| Temp.effect on zero | 0.05%F.S./10℃ |
| Input impedance | 800~1000Ω |
| Output impedance | 800~1000Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5~12V |
| Maximum excitation | 15V |
| Compensated temp range | -10~60℃ |
| Operation temp range | -20~80℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | φ3×3m |
| Material | Stainless Steel |
