| Model: | SK303 |
| Category： | S Type Load Cell |
| Capacity: | 50,100,200,500,1000,2000N |
| Rated Output: | 2.0±10%mV/V |
| Material: | Stainless steel |
| Product Orgin: | China |
| The load cell can be customised for capacity, accuracy, dimension and other parameters. | |

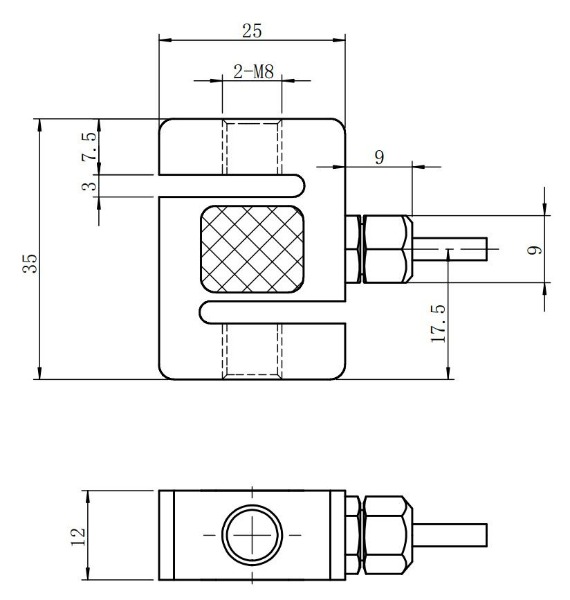

SK303 S Type Tension and Compression Force Sensor is strain gauge based for tension and compression force measurement with six rated capacities available in 0-50N / 0-100N / 0-200N / 0-500N / 0-1000N / 0-2000N. The M8 threaded holes located at both ends can be used for mounting accessories such as loading buttons, hooks, etc. to meet the requirements of different applications.
| Specifications | Technique |
| Capacity | 50,100,200,500,1000,2000N |
| Rated output | 2.0±10%mV/V |
| Zero balance | ± 0.05mV/V |
| Non-linearity | 0.05%F.S. |
| Hysteresis | 0.05%F.S. |
| Repeatability | 0.05%F.S. |
| Temp.effect on output | 0.025%F.S./10℃ |
| Temp.effect on zero | 0.025%F.S./10℃ |
| Input impedance | 385±20Ω |
| Output impedance | 350±10Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5V |
| Maximum excitation | 15V |
| Compensated temp range | -10~60℃ |
| Operation temp range | -20~80℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | Φ3×3000mm |
