SK302B Universal S type load cell

Model: SK302B
Category:
 S type Load Cell
Capacity: 102050100200kg
Rated Output: 2.0±10%mV/V
Product Orgin: China
The load cell can be customised for capacity, accuracy, dimension and other parameters.

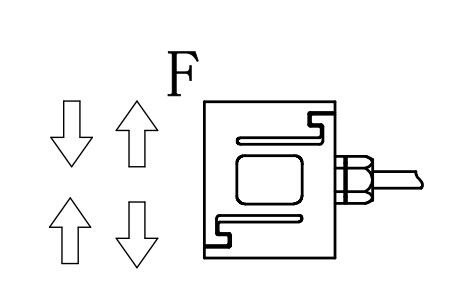

SK302B Universal S type load cell is strain gauge sensors made of stainless steel for tension and compression force measurements.  The compact design of 19.1x16x12mm allows the miniature Force Sensor SK302B to be easily embedded in machinery or test equipment-ideal for packaging machinery, assembly machinery, end-of-line test equipment and other applications where space is limited.

Specifications  Technique
Capacity  102050100200kg
Reted output  2.0±10%mV/V
Zero Balance  ±0.02mV/V
Creep30min  ≤0.05%F.S.
Non-linearity  ≤0.05%F.S.
Hysteresis  ≤0.05%F.S.
Repeatability  ≤0.05%F.S.
Input impedance  350±5Ω
Output impedance  350±5Ω
Temp.effect on output  0.05%F.S./10 C
Temp.effect on zero  0.05%F.S./10 C
Insulation resistance  ≥5000MΩ/100V(DC)
Recommended excitation  5~12V
Maximum excitation  15V
Compensated Temp Range  -10~60 C
Operating Temp Range  -20~80 C
Safe overload  150%F.S.
Ultimate overload  200%F.S.
Cable size  3x3000mm
Weight  0.1kg
Material  Stainless steel/不锈钢
