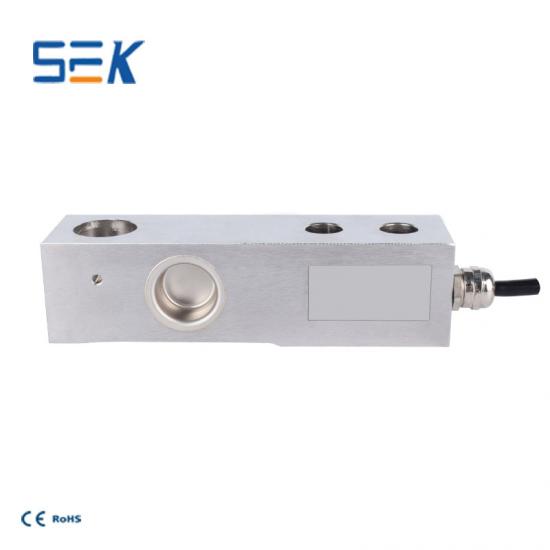

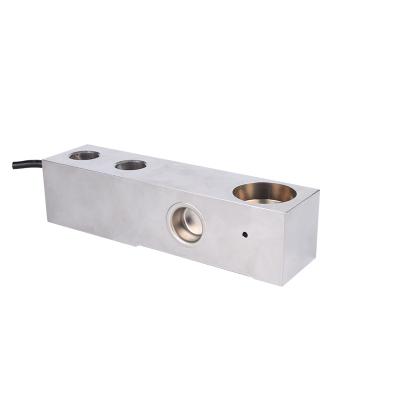

SK509 Single point load cell

Model: SK509
Category: Beam Load Cells
Capacity: 0.22,0.55,1.1,1.76,2.2,4.4t
Rated Output: 1.94±0.1%mV/V
Product Orgin: China
The load cell can be customised for capacity, accuracy, dimension and other parameters.

SK509 Single point load cell is made of stainless steel with strain gauge technology and is available in six different measuring ranges 0.22t / 0.55t / 1.1t / 2.2t  / 4.4t. The bending beam load cell offers lightweight and durable construction, with a maximum capacity of 4.4t, suitable for various weighing applications.The SK509 models are suitable for use in packaging machines, electronic scales, automatic filling machines etc.



Specifications Technique
Capacity 0.22,0.55,1.1,1.76,2.2,4.4t
Accuracy class C3
Rated output 1.94±0.1%mV/V
Zero balance ±2%F.S.
Non-linearity 0.017%F.S.
Hysteresis 0.017%F.S.
Repeatability 0.017%F.S.
Creep(30min) 0.0166%F.S.
Temp.effect on output 0.014%F.S./10
Temp.effect on zero 0.0125%F.S./10
Input impedance 390±3Ω
Output impedance 350±5Ω
Insulation 5000MΩ/100VDC
Recommended excitation 5~15V
Maximum excitation 20V
Compensated temp range -10~40
Operation temp range -30~70
Safe overload 150%F.S.
Ultimate overload 300%F.S.
Cable size Φ5.4×1500mm
Material Stainless Steel
IP Class IP68
