Model: | SK703 |
Category: | Multi-axis sensors |
Capacity: | X:50/100/200/300/500; Y:50/100/200/300/500; Z:50/100/200/300/500/1000 |
Rated Output: | ≈1.0mV/V |
Product Orgin: | China |
The load cell can be customised for capacity, accuracy, dimension and other parameters. |

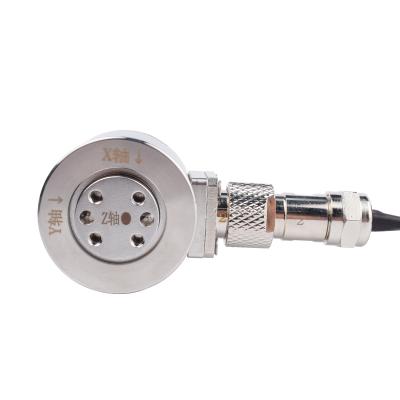

SK703 Triaxial force sensor is made of stainless steel with strain gauge technology to provide mV/V outputs for all three axes via independent Wheatstone full bridges. The 3-axis force sensor offers a choice of five measurement ranges of 0-50N / 0-100N / 0-200N / 0-300N/ 0-500N, and all three axes support tension and compression force measurements. The triaxial load cell is suitable for actuator force monitoring, grinding force measurement, industrial test benches, force simulation, etc.
Specifications | Technique |
Capacity(N) |
X:50/100/200/300/500; Y:50/100/200/300/500; Z:50/100/200/300/500/1000 |
Rated output | ≈1.0mV/V |
Zero balance | ±2%F.S. |
Non-linearity | 0.3%F.S. |
Hysteresis | 0.2%F.S. |
Repeatability | 0.2%F.S. |
Interference error | 0.5%F.S. |
Temp.effect on output | 0.1%F.S./10℃ |
Temp.effect on zero | 0.1%F.S./10℃ |
Input impedance | 350±10Ω |
Output impedance | 350±10Ω |
Insulation | ≥5000MΩ/100VDC |
Recommended excitation | 5~12V |
Maximum excitation | 15V |
Compensated temp range | -10~40℃ |
Operation temp range | -20~75℃ |
Safe overload | 150%F.S. |
Ultimate overload | 300%F.S. |
Cable size | Φ5×3000mm |
